Getting started

A general guide to how to use the CHI@Edge testbed for your research.

Whether you're using existing devices or wich to enroll your device(s) into the testbed and use them in your edge research, you must first be associated with an active Chameleon allocation. This guide covers this process, and also provides a tutorial for basic usage of the testbed GUI.

Step 1: Log in to Chameleon

Just click the “Log in” button situated in the top right corner of our main page – you probably won’t even need to create an account!

If your institution is a member of InCommon (most US research and education institutions are) – or if you have a Google account – you can log in with your institutional/Google credentials via the federated login. Otherwise, the log in process will guide you to create an account (read more about logging into Chameleon via federated login).

On your first Chameleon login you will be asked to accept terms and conditions of use. Please, note that as part of those terms and conditions you are requested to acknowledge Chameleon in publications produced using the testbed: see our FAQ for information on how to reference Chameleon in your publications and the suggested acknowledgement text.

Once you log in, you will be able to edit your Chameleon profile, sign up for webinars, and participate in our community. However, to actually use the testbed you will first need to join or create a project (see below).

Step 2: Create or join a project

To get access to Chameleon resources, you will need to be associated with a project that is assigned a resource allocation.

If you want to join an existing Chameleon project, you will need to ask the PI of the project to add your username. You can find your username in your Chameleon profile–it is also displayed in the top-right corner when you are logged in.

If you want to create a project, you will first either need to obtain a PI status or work with somebody who has PI status. To determine if you can obtain PI status, please see a list of PI eligibility criteria. If you do not meet these criteria (e.g., students generally do not), you will need to ask your advisor or other scientist supervising your research to create the project for you. You can request PI status by checking a box in your Chameleon profile. Chameleon PI status requests are typically reviewed within one business day.

Once you have PI status, you may apply for a new project with an initial allocation. A project application typically consists of a short description of your intended research and takes one business day to process. Once your project has been approved, you will be able to utilize the testbed sites.

Step 3: Start using Chameleon!

Congratulations, you are now ready to launch your first container! Containers are a simple way to deploy applications. Learn more about what containers are with this guide from docker. Follow these steps to launch a container and manage it.

The CHI@Edge dashboard

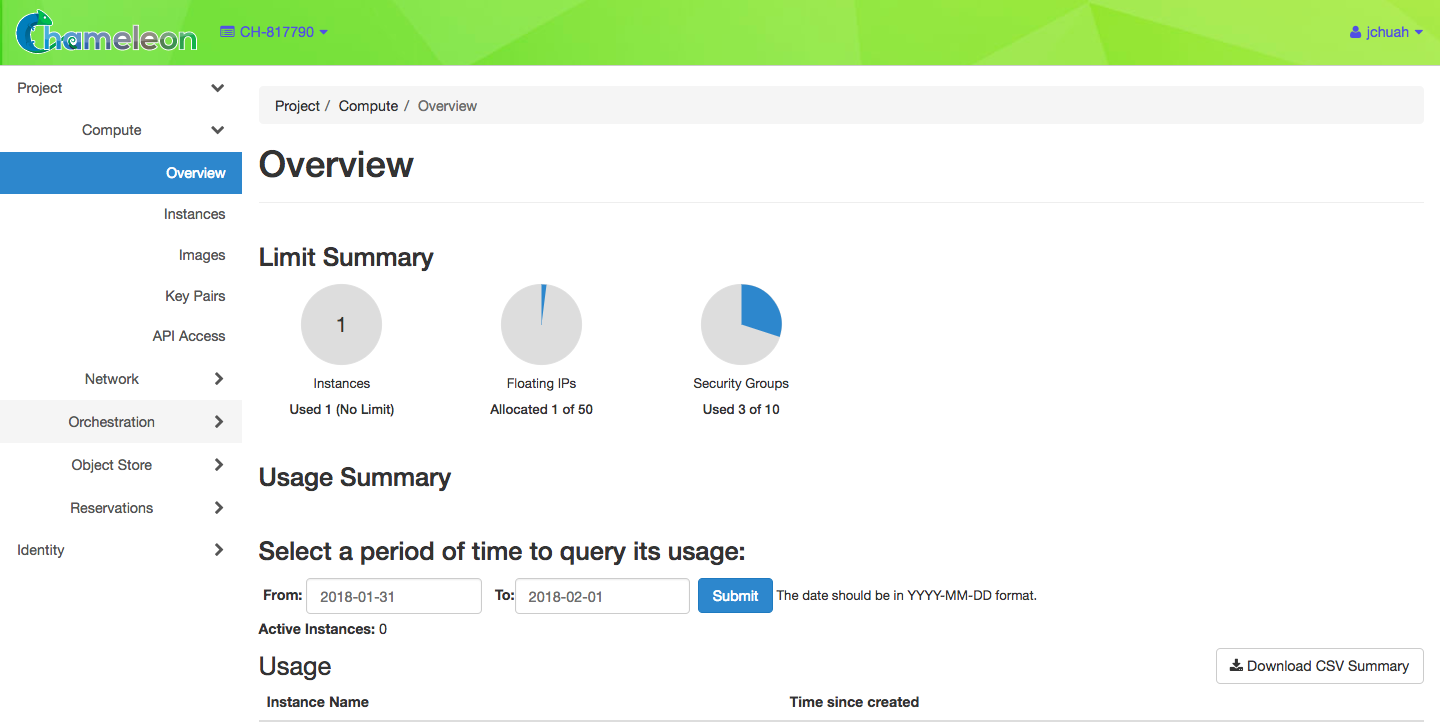

Chameleon Edge resources are available through CHI@Edge. When you access this site, you are first taken to a dashboard, which shows a summary of your project’s current resource usage. The dashboard looks something like this:

The CHI@Edge Hardware discovery page

Visit the hardware discovery page for edge devices by going to this link. The landing page serves as a broad description of our deployment while the auto-updated table lets you discover what kind of resources are currently hosted in CHI@Edge with various information about hardware model, supported peripherals, current OS Kernel, device location, and more...

The Lease Calendar

Visit the calendar for edge devices by going to this link. This calendar lets you discover when resources are available to use. The Y axis of this chart represents the different edge devices in the system, and the X axis represents time.

Create a Reservation

To get access to an edge device, you can reserve it. Here, we provide instructions for using reservations, which can be skipped if a reservation is not needed. We include instructions for using either the dashboard interface or CLI.

Create a Reservation Using the Dashboard

After navigating to the CHI@Edge dashboard, follow these instructions to create a reservation.

  1. In the sidebar, click Reservations, then click Leases

  2. Click on the + Create Lease button in the toolbar

  3. Enter a name, for example my_first_lease

  4. Update the start date and time, along with the end date and time.

  5. Next to General at the top, select Devices. Here, enter 1 for both the minimum and maximum number of devices. You can also add a device filter for a specific type of edge device.

  6. Click Create.

Your reservation will show in the list of leases. Once the status changes from PENDING to ACTIVE, you can launch a container. Before you can do this, you must get the reservation ID of a device. Click on your lease name from the Leases overview to see the Lease Detail page. Under the Reservations header, you will see an id field. Note this value. For example in the following figure, the value is 0e4a0c01-c597-4294-a926-6350af77c5d4.

Create a Reservation Using the CLI

If you have previously installed blazar, you will need to reinstall to add in the new changes for edge devices

pip install git+shttps://github.com/chameleoncloud/python-blazarclient@chameleoncloud/stable/train

Be sure to use the OpenStack RC file downloaded from the Edge site. To get this file, first log in to the GUI dashboard at CHI@Edge. Once there, follow the same instructions as is done on the other sites to download this file.

To create a lease, use the lease-create command. The following arguments are required:

  • --reservation with resource_type=device, min, max, and resource_properties attributes

  • --start-date in YYYY-MM-DD HH:MM format

  • --end-date in YYYY-MM-DD HH:MM format

  • A lease name.

The attribute resource_properties may be used to specify what sort of edge device you want to reserve. For example, to reserve a Raspberry Pi from June 24, 2021 at 3:00pm to June 25, 2021 at 1:00pm, with the name my-first-lease, you may use the following command:

blazar lease-create \
  --reservation resource_type=device,min=1,max=1,resource_properties='["==", "$vendor", "Raspberry Pi"]' \
  --start-date "2021-06-24 15:00" --end-date "2021-06-25 13:00" \
  my-first-lease

You may also use the device name to reserve a specific device. For example, to reserve the device named rpi3-01, you can change your command like below:

blazar lease-create \
  --reservation resource_type=device,min=1,max=1,resource_properties='["==", "$name", "rpi3-01"]' \
  --start-date "2021-06-24 15:00" --end-date "2021-06-25 13:00" \
  my-first-lease

The output of lease-create should look like

+--------------+-----------------------------------------------------------------------+
| Field        | Value                                                                 |
+--------------+-----------------------------------------------------------------------+
| created_at   | 2021-06-24 15:43:36                                                   |
| degraded     | False                                                                 |
| end_date     | 2021-06-25T13:00:00.000000                                            |
| events       | {                                                                     |
|              |     "created_at": "2021-06-24 15:43:36",                              |
|              |     "updated_at": null,                                               |
|              |     "id": "243988c9-5e04-484e-991e-e9a19bc107f9",                     |
|              |     "lease_id": "8aad6912-2eb5-4140-812f-123e5cb56ca3",               |
|              |     "event_type": "end_lease",                                        |
|              |     "time": "2021-06-25T13:00:00.000000",                             |
|              |     "status": "UNDONE"                                                |
|              | }                                                                     |
|              | {                                                                     |
|              |     "created_at": "2021-06-24 15:43:36",                              |
|              |     "updated_at": null,                                               |
|              |     "id": "8aa2f211-9434-4ae0-a01a-e454e0a045e7",                     |
|              |     "lease_id": "8aad6912-2eb5-4140-812f-123e5cb56ca3",               |
|              |     "event_type": "before_end_lease",                                 |
|              |     "time": "2021-06-24T15:45:00.000000",                             |
|              |     "status": "UNDONE"                                                |
|              | }                                                                     |
|              | {                                                                     |
|              |     "created_at": "2021-06-24 15:43:36",                              |
|              |     "updated_at": null,                                               |
|              |     "id": "e8892924-649a-4beb-aa46-9e16f6331dab",                     |
|              |     "lease_id": "8aad6912-2eb5-4140-812f-123e5cb56ca3",               |
|              |     "event_type": "start_lease",                                      |
|              |     "time": "2021-06-24T15:45:00.000000",                             |
|              |     "status": "UNDONE"                                                |
|              | }                                                                     |
| id           | 8aad6912-2eb5-4140-812f-123e5cb56ca3                                  |
| name         | my-first-lease                                                        |
| project_id   | a5f0758da4a5404bbfcef0a64206614c                                      |
| reservations | {                                                                     |
|              |     "created_at": "2021-06-24 15:43:36",                              |
|              |     "updated_at": "2021-06-24 15:43:36",                              |
|              |     "id": "500e0c36-2089-46a5-bf7c-cc46e5f65a0d",                     |
|              |     "lease_id": "8aad6912-2eb5-4140-812f-123e5cb56ca3",               |
|              |     "resource_id": "48001fa1-ccb5-4e30-b511-a90455930776",            |
|              |     "resource_type": "device",                                        |
|              |     "status": "pending",                                              |
|              |     "missing_resources": false,                                       |
|              |     "resources_changed": false,                                       |
|              |     "resource_properties": "[\"==\", \"$vendor\", \"Raspberry Pi\"]", |
|              |     "before_end": "default",                                          |
|              |     "min": 1,                                                         |
|              |     "max": 1                                                          |
|              | }                                                                     |
| start_date   | 2021-06-24T15:45:00.000000                                            |
| status       | PENDING                                                               |
| trust_id     | ec2a893aa0494d72bcc5fbb3b73e7e66                                      |
| updated_at   | 2021-06-24 15:43:36                                                   |
| user_id      | b8f54aa95b96b9fb69e31a3e39df6a7bad29581439cf8bd8c9d59d9d7d048f3a      |
+--------------+-----------------------------------------------------------------------+

Look for the reservations entry, and within this item find the id entry. In the above example, this is 500e0c36-2089-46a5-bf7c-cc46e5f65a0d. Save this value someone, as it will be used later. Note that this is not the value from the row with id in the left column.

Note

It may take up to a minute for your reservation to change from PENDING to ACTIVE status. One the lease becomes ACTIVE, you can use it.

At this point, you can return to the GUI to continue setting up your container.

Launching a container

To launch a container, follow the following steps:

  1. In the sidebar, click Container, then click Containers.

  2. Click on the Create Container button in the toolbar and the Create Container wizard will load

  3. Give your container a name. For example, since it’s your first container, my_first_container may be a good name. Then, enter the name of an image you want to launch from Docker Hub. You must use the full name of the image. Optionally, you can supply a custom command to override the default command run by Docker.

Only the ARM architecture is currently supported. Make sure the image used is compatible with ARM. Here is a list of such images on Docker Hub.

  1. Click Scheduler Hints in the sidebar. Next to custom, enter “reservation” and click the + sign. It will move to the right, and there enter the reservation ID saved from the lease-create step.

  2. In the same Scheduler Hints dialog, enter a new hint called "platform_version" and click the + sign, then enter "2" into the value. This is required while we are migrating existing devices to the new platform, which supports open enrollment.

  3. Click the Create button.

Congratulations, you have launched a container! It may take a few minutes for your container to become active if the image is not yet downloaded to the target device.

Launching with a Device Profile

For some functions, extra setup must take place while a container is launched. For example, to use a camera, docker needs to load the device. This setup is handled by launching your container with a device profile. You can see what device profiles work with each device on our table of current hardware.

Additionally, all devices support the profile cap_net_admin, which gives adds the capability CAP_NET_ADMIN to a container.

To use a device profile, you must launch your container using the CLI or the python interface, python-chi. In the CLI, a device profile is used by adding the argument --device-profile "<profile_name>". With python-chi, you can include device_profiles=["<profile_name>"] as a keyword argument to container.create_container.

Associating an IP address

For your container to be accessible over the Internet, you need to first assign a floating IP address.

  1. First, select your container name in the Containers page, which will bring you to an overview for the container. Under Spec, you will see a field titled Addresses and within this, you should see an IP address next to the text addr. Note this address.

  2. Go to the Floating IP dashboard by clicking on Network and Floating IPs in the sidebar.

  3. If you have a Floating IP not currently associated to a container, click the Associate button for the IP. A dialog will load that allows you to assign a publicly accessible IP to your container. Under Port to be associated, use the IP address from the container overview from step 1. Click the Associate button in the dialog to complete the process of associating the public IP to your container.

    Here you can assign a floating IP address

  4. If you didn’t already have a Floating IP available, you may allocate one to your project by clicking on the Allocate IP to Project button along the top row in the Floating IP dashboard. A new dialog will open for allocating the floating IP.

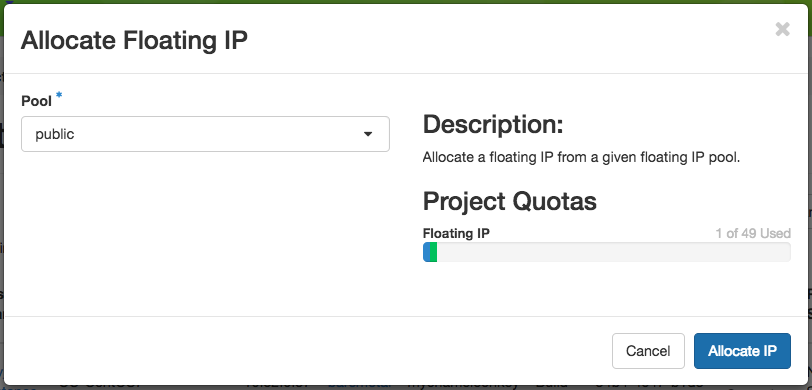

    This dialog allows you to allocate an IP address from Chameleon’s public IP pool

    Click the Allocate IP button. The Floating IP dashboard will reload and you should see your new Floating IP appear in the list. You can now go back to step 3.

Access to your container

Once your container has launched, there are a few ways to interact with it.

If your container communicates over the network, you can use the assigned floating IP to access it. For example, if your container is running a web server on port 8888, with floating IP 129.114.108.102, you can connect to it by going to http://129.114.108.102:8888 in your browser.

By selecting your container name from the list of containers, you will be taken to an overview page for your container. Here, you can select the logs tab to see the output from your container. In the top right of this page, next to the button labeled Refresh, you can select the drop-down arrow. One of the options in this drop-down menu is Execute Command. Clicking this will open a window, allowing you to enter a command to execute on your container. The output from this command will then be displayed, after the command runs. In the future, you will be able to connect to your container via the Console tab, but for the moment this is not supported.
